This technical article provides a comprehensive standard-compliant interpretation of power distribution transformer testing systems developed and manufactured by Qingdao Nanke International Electric Co., Ltd. As a global leading supplier in the electrical equipment testing sector with cutting-edge R&D and industrial application expertise, we are committed to driving industry technological advancement. Our transformer testing systems are innovative solutions designed for global transformer manufacturers, effectively addressing core industry pain points including low testing efficiency, unreliable data, and insufficient full-item testing capabilities. Strictly adhering to IEC 60076 and IEEE international standards, our products achieve key technological breakthroughs in one-time wiring fully automatic testing and high-precision data acquisition. To date, our solutions have been applied in over 5 countries and regions, serving more than 200 enterprise customers, and have been verified for performance in transformer factory routine testing, third-party certification, and power grid acceptance scenarios .

Technical Definition

Power distribution transformer testing systems are specialized equipment designed to conduct full-life cycle quality testing for power transformers, integrating core functions such as DC resistance, turns ratio, no-load/load loss, and insulation resistance tests to evaluate electrical performance, insulation status, and mechanical reliability. Developed based on automated control and precision measurement technologies, these systems ensure the safe and stable operation of power systems, becoming indispensable technical support for transformer manufacturing quality control and power grid safety .

1. Fully Automatic Series (NKE-DTTS-AUTO): High-precision standard series, suitable for factory routine testing of 0.12–1.5kV to 38.5kV, 500kVA to 10000kVA transformers, featuring one-time wiring and one-click fully automatic testing .

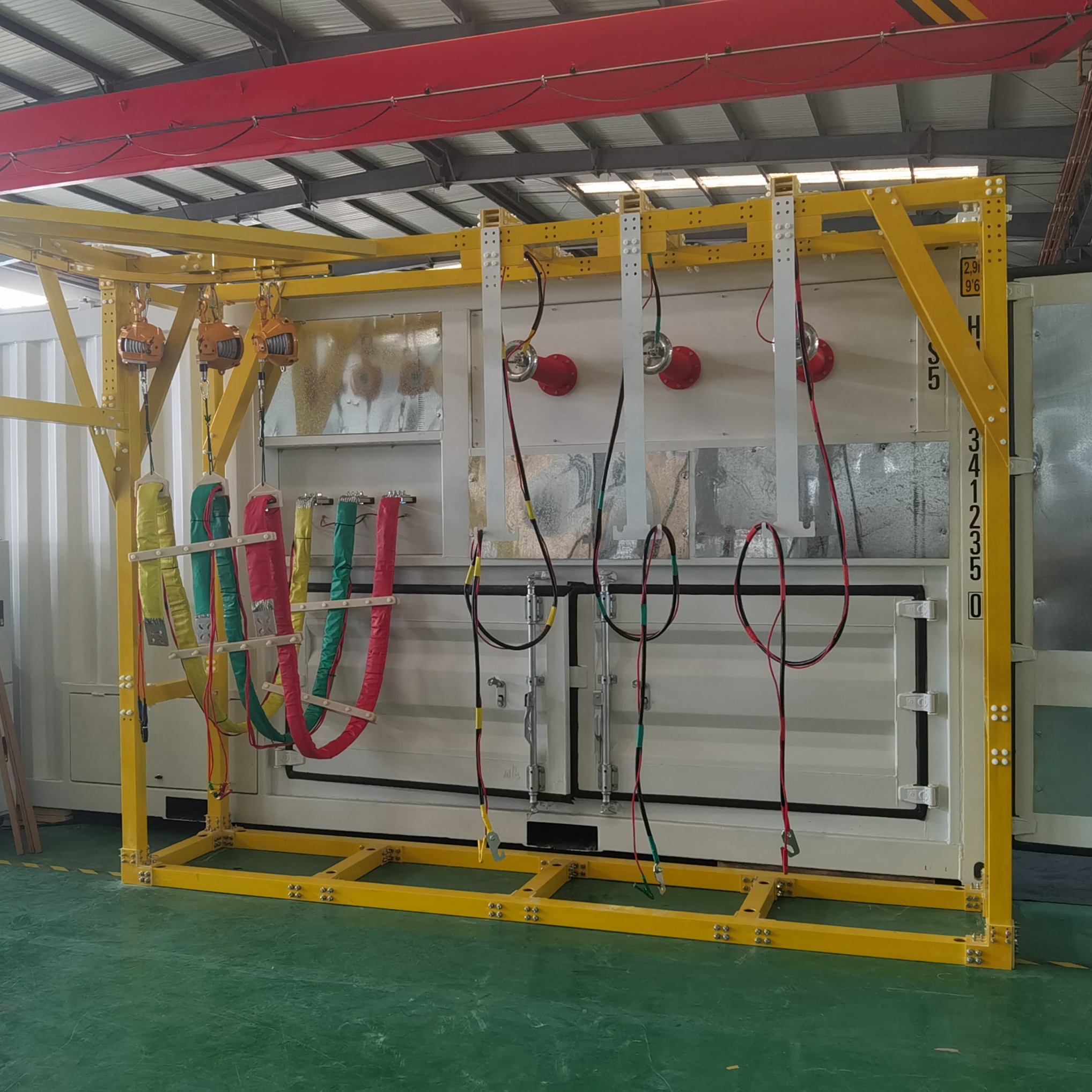

2. Semi-Automatic Series (NKE-DTTS-SE): Container-integrated mobile series, suitable for medium and large capacity transformer testing and overseas project deployment, supporting semi-automatic full-item testing with high measurement accuracy .

Design Philosophy
Our products are designed with core concepts of innovation-driven, customer-centric, and quality-first, fully considering harsh industrial conditions and strictly following full-life cycle reliability standards to provide stable, low-maintenance, and cost-effective technical solutions for customers .

Technical Principles

The core working principle of our transformer testing systems is based on automated control technology and precision data acquisition. The complete implementation logic includes three key steps: first, one-time wiring connects all test modules to the transformer under test; second, the system automatically executes preset test procedures according to international standards; third, real-time data is collected, analyzed, and standardized test reports are generated and exported .

1. Automated Control Module: Integrates intelligent test procedure scheduling, eliminating manual operation errors and improving testing efficiency by over 80% compared to traditional methods .

2. Precision Measurement Module: Adopts 0.05-level high-precision sensors, ensuring data accuracy and traceability, with all data automatically stored and managed via upper computer systems .

Comparison with Traditional Solutions
Compared to traditional manual testing methods, our systems solve long-standing industry pain points: traditional methods require repeated wiring and multiple operators, while our one-time wiring design reduces operation time by 90%; manual data recording is prone to errors, while our automated data collection ensures 100% data accuracy and traceability .

Technical Parameters and Specification Standards

All parameters of our transformer testing systems are strictly tested in accordance with IEC 60076 standards, with clear test conditions and strict tolerance control. We can provide full-parameter test reports for each batch of products and support third-party authoritative testing .

Technical Advantages and Differentiation

One-Click Fully Automatic Testing
Technical Support: Independent R&D of one-time wiring intelligent detection technology, supported by automated control system. Verified by over 200 global transformer factory applications.
Quantifiable Performance: Reduces testing time per transformer by 90%, requires only 1 operator after simple training.
Customer Value: Significantly lowers labor costs, eliminates manual operation errors, and achieves standardized batch quality control .

High-Precision Traceable Data
Technical Support: 0.05-level precision sensors, upper computer data management system, compliant with IEC standards.
Quantifiable Performance: Data accuracy rate reaches 100%, all test records are stored and traceable for 10 years.
Customer Value: Ensures compliance with international certification requirements, avoids quality disputes caused by unreliable data .

International Standards and Compliance Certifications

Our transformer testing systems strictly follow international standards throughout R&D, design, production, and testing processes, with a complete compliance system to meet global customer procurement and regulatory requirements .

Core International Standards Followed
1. IEC International Electrotechnical Commission: IEC 60076 Power Transformers
2. IEEE Institute of Electrical and Electronics Engineers: IEEE Standard for Power Transformers .

Authoritative Compliance Certifications
Products comply with UL and CE international certifications, and we can provide third-party testing reports from SGS/TÜV upon customer request .

Application Scenarios and Implementation Solutions

1. Transformer Manufacturers: Factory routine testing for batch production, ensuring product quality compliance with international standards. Adopt fully automatic series to achieve efficient batch testing.
2. Third-Party Testing & Certification Institutions: Product certification testing, requiring high data accuracy and compliance. Our systems provide standardized test reports recognized globally.
3. Power Grid Companies: Grid acceptance testing, ensuring transformer safety and reliability. Support on-site testing with mobile semi-automatic series .

Selection Guidelines
1. Confirm core needs: Clarify transformer capacity, voltage level, and required test items.
2. Match product series: Choose fully automatic series for large-scale batch production, semi-automatic series for mobile or medium-capacity testing.
3. Verify compliance: Ensure the product meets target market standards and certifications.
4. Customization support: Contact our technical team for customized solutions if special needs exist .

Technical FAQ

Q: Do your testing systems comply with international standards like IEC and IEEE?
A: Yes, all our products strictly follow IEC 60076 and IEEE standards, with test reports compliant with global certification requirements .

Q: Can your systems be customized for special transformer models or test requirements?
A: Yes, we provide customized solutions for different voltage levels, capacities, and special test items based on customer needs .

Q: Do you provide after-sales technical support and on-site debugging services?
A: Yes, we offer 7×24-hour technical support and on-site debugging services for global customers, including operator training .
