PoleMounted Transformer Testing Equipment by Qingdao Nanke International Electric Technical Specifications Global Compliance

This technical article provides a comprehensive, standard-compliant interpretation of pole-mounted transformer testing equipment developed and manufactured by Qingdao Nanke International Electric Co., Ltd. Founded in June 2025, we are a leading supplier in the electrical testing equipment sector, dedicated to advancing industry technology through innovative solutions. Our pole-mounted transformer testing equipment is a specialized solution designed for global transformer manufacturers, addressing core industry pain points including low testing efficiency, unreliable data, and non-compliance with international standards. Strictly adhering to IEC 60076, ISO 9001:2015, and ISO 14001:2015 standards, our equipment achieves a key technological breakthrough with the industry-first "one-time wiring, fully automatic testing" solution. To date, our products have been deployed in 5+ countries including the United States, Mexico, and Indonesia, serving over 200 enterprise clients, and have obtained three international management system certifications, recognized as a highly reliable technical solution worldwide .

Technical Definition

Pole-mounted transformer testing equipment is a professional device for full-life-cycle quality inspection of pole-mounted transformers, developed based on automated measurement and control technology. It performs key tests including DC resistance, turns ratio, no-load/load loss, and insulation resistance to comprehensively evaluate electrical performance, insulation status, and mechanical reliability, ensuring stable operation of power systems. As a core solution in the electrical equipment manufacturing sector, it has become an indispensable technical support for compliant transformer production and power system maintenance .

Main Classifications

1. NKE-DTTS-AUTO Series: High-precision fully automatic series, suitable for mass production of pole-mounted transformers, featuring 0.05-level accuracy and one-time wiring to complete all 7 routine tests .

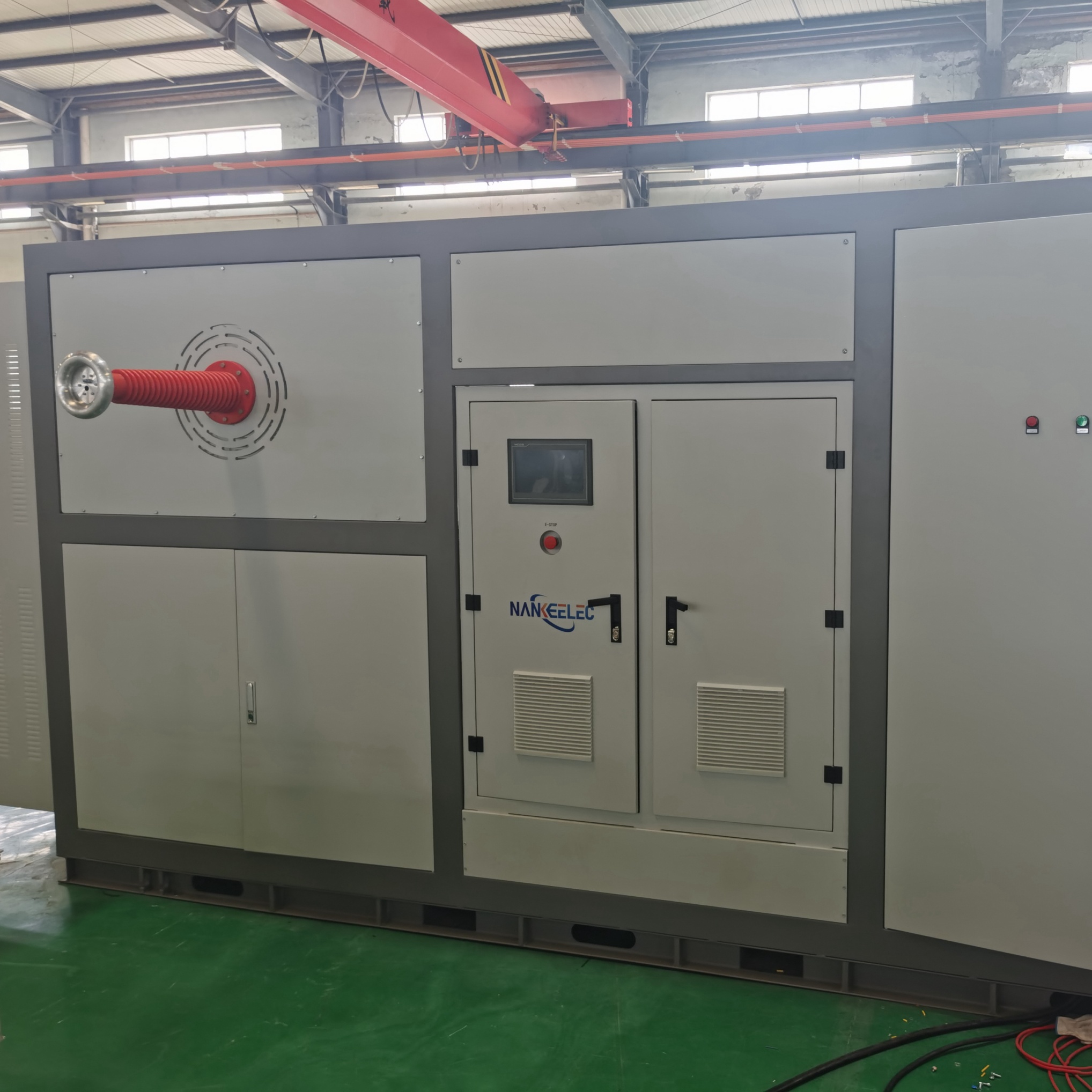

2. NKE-DTTS-SE Series: Semi-automatic container-integrated series, ideal for overseas project deployment and modular test station construction, supporting full-item tests for medium and large capacity transformers .

Design Philosophy

Our equipment is designed with core principles of high precision, efficiency, compliance, and customizability, fully considering harsh industrial conditions and strictly following full-life-cycle reliability standards to provide stable, low-maintenance, cost-effective solutions for clients .

Technical Principle

The core working principle of our pole-mounted transformer testing equipment is based on automated measurement and control technology. Its complete operational chain includes: 1. Input: Single-time wiring to connect the transformer to the testing system; 2. Processing: The system automatically executes preset test procedures, collecting data through high-precision sensors; 3. Output: Automatically generates standardized compliance reports; 4. Result: Provides a comprehensive evaluation of transformer performance .

Core Architecture & Innovative Design

1. Automated Control Module: Enables one-click initiation of all test items, eliminating repeated wiring and manual operation errors, significantly improving testing efficiency .

2. Data Acquisition & Analysis Module: Equipped with high-precision sensors and real-time data processing algorithms, ensuring data accuracy and traceability, avoiding manual recording errors .

Comparison with Traditional Solutions

Compared to traditional manual testing solutions, our equipment solves long-standing industry pain points: 1. Traditional solutions require multiple wiring and manual operation, leading to low efficiency and high error rates; our one-time wiring fully automatic solution reduces testing time by over 70% . 2. Traditional manual data recording lacks traceability; our system automatically records and stores all data, ensuring compliance with international audit requirements .

Technical Parameters & Specifications

All parameters of our equipment are strictly tested in accordance with IEC 60076 standards, with clear testing conditions and strict tolerance control. We provide full parameter test reports for each batch of products and support third-party authoritative testing .

Parameter Category	Core Parameter	Standard Indicator	Testing Condition	Selection Reference
Core Measurement Performance	Voltage Range	10kV to 500kV	25℃ Room Temperature	Select based on transformer voltage level
Core Measurement Performance	Accuracy Level	0.05 Level	Calibrated with national standard equipment	Meets high-precision testing requirements
Electrical Characteristics	Withstand Voltage Output	0–200kV+	Standard atmospheric pressure	Complies with IEC 60076 withstand voltage requirements
Environmental Adaptability	Operating Temperature	-10℃ to 50℃	Indoor/Outdoor Industrial Environment	Suitable for most global operating conditions

Note: The above parameters are standard specifications for regular series. We can provide parameter customization and function adjustments based on clients' special working conditions and application requirements .

Technical Advantages & Differentiation

1. Industry-First One-Time Wiring Fully Automatic Testing

Technical Support: Industry-leading one-time wiring solution, integrated with automated control systems; verified through over 200 client projects . Quantifiable Performance: Reduces testing time by over 70% compared to manual testing, data error rate is less than 0.1% . Client Value: Lowers labor costs by reducing reliance on skilled technicians, improves testing efficiency and data reliability, ensuring compliance with international standards .

2. Comprehensive International Standard Compliance

Technical Support: Fully compliant with IEC 60076 standards, holding ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications . Quantifiable Performance: Meets regulatory requirements of over 10 global markets, including the United States and European Union . Client Value: Eliminates compliance risks for overseas exports, enables quick access to global markets .

International Standards & Compliance Certifications

All R&D, design, production, and testing processes of our equipment strictly follow the latest international standards and industry specifications, with a complete compliance and certification system to meet strict procurement and regulatory requirements of global clients .

Core International Standards Followed

1. IEC International Electrotechnical Commission: IEC 60076 (Power Transformers) . 2. ISO International Organization for Standardization: ISO 9001:2015 (Quality Management System), ISO 14001:2015 (Environmental Management System), ISO 45001:2018 (Occupational Health and Safety Management System) .

Authoritative Compliance Certifications & Qualifications

1. System Certifications: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018 . 2. Industry Qualifications: Customs import-export registration, CNAS-accredited testing capabilities, national high-tech enterprise certification . 3. Document Support: We can provide third-party testing reports, factory inspection reports, and compliance declarations upon client request .

Technical FAQ

Q: What voltage range does your pole-mounted transformer testing equipment support? A: Our equipment covers 10kV to 500kV voltage levels, adapting to various pole-mounted transformer types and meeting IEC 60076 standards .

Q: Can your equipment generate compliance reports for international markets? A: Yes, our fully automatic systems automatically generate standardized reports that meet IEC and ISO requirements, ensuring recognition by global regulatory bodies .

Q: Do you provide custom solutions for special testing requirements? A: Yes, we offer customized testing systems based on clients' specific transformer types, voltage levels, and testing scenarios .

Q: What after-sales technical support do you provide for overseas clients? A: We offer 2-year free warranty, lifelong remote technical support, and on-site service upon request; our overseas service email is [email protected] .
